光纤激光打标机

激光类型/波长

Laser type/Wavelength

YLP/1064nm

激光输出功率(按需)

Laser power

10W

20W

30W

50W

激光光束质量M2

Beam quality M2

<3

激光脉冲宽度

Pulse width

≤100ns

脉冲重复频率

Pulse repetition frequency

20kHz ~ 200kHz

功率稳定性>4h

Power stability>4h

+/-2% rms

激光模式

Laser mode

TEM00

打标范围

Marking size

100mm x 100mm
180mm x 180mm 或 订制更大/or Order

打标深度

Marking depth

可调

Adjustable

标记速度

Marking speed

250字符/s

Character/s

Min打标线宽

Marking width Min

0.03mm(30μm)

Min字符大小

Marking character Min

0.3mm

重复打标精度

Repeat marking accuracy

≤10μ/rad

耗电功率

Power total

≤800W

电力需求

Power supply

AC 220V/50Hz

整机尺寸(参考)

Machine  Size

570*840*1240mm

光纤激光打标设备介绍

光纤激光打标设备是利用激光束在各种不同的物质表面打上持久的标记。打标的效应是 通过表层物的蒸发露出深层物质，或者是通过光能导致表层物质的物理变化而“刻”出痕迹，或者是通过光能烧掉部分物质显出所需刻蚀的图案、文字、条形码等各类图形。

设备特点：

·  全风冷系统，无需维护；

·  性能稳定，整机免维护时间可达到100,000小时；

·  各类金属材质及部分非金属材质打标，可进行深度标刻,适用性很强；

·  与计算机配合，可随意更改标刻图形和参数；

·  激光光斑小,打标线条细,标刻效果精细，有防伪性。

应用行业：

·  对深度、光滑度、精细度要求较高的领域；

·  所有金属，如铝片、不锈钢、铜件、五金制品等；

·  手机按键、塑胶透光按键；

·  电子元器件、集成电路（IC）；

·  电工电器、通讯产品、标牌；

·  卫浴洁具、五金制品；

·  工具配件、精密器械；

·  PVC管材、医疗器械等行业。

Fiber laser marking machine introduction

Fiber laser marking machine works with a laser beam on a variety of materials and makes the permanent mark. The theory is exposing the deep material by evaporating the surface substances, or surface material physical changing or burning by focused light energy, so that pattern, text, bar code and other graphics will be marked.

Advantages:

·  Air cooling system, no maintenance;

·  Stable performance, life time can reach 100,000 hours;

·  All kinds of metal materials and some non-metallic materials marking;

·  Free to change the marking graphics and parameters;

·  Marks are anti-falsification, more fine and unique.

Applications:

·  Areas with depth, smoothness and finer requirements;

·  All kind of metals, such as aluminum, stainless steel, copper etc.

·  Mobile phone keypad, plastic translucent keys;

·  Electronic components, integrated circuits (IC), PCB;

·  Electrical appliances, communication products, signage;

·  Sanitary ware, hardware products;

·  Tool accessories, precision instruments;

·  PVC pipes, medical instruments.

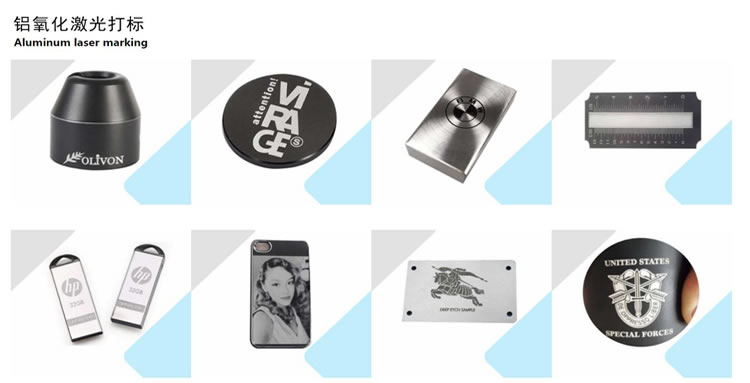

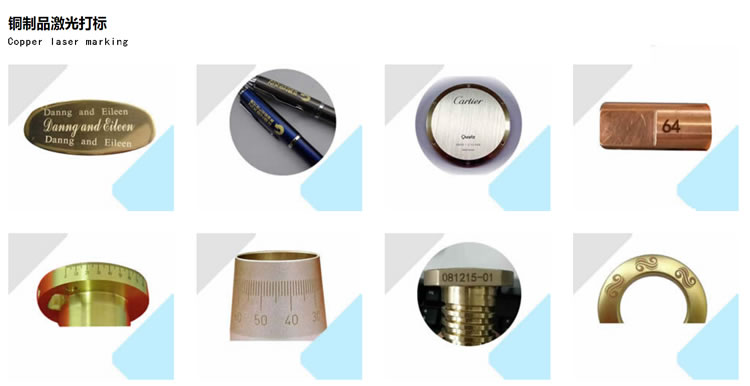

光纤激光打标设备样品

Samples for Fiber Laser Marking Machine
